MIL-DTL-5015 Connectors: Applications, Benefits, and Specs

MIL-DTL-5015 connectors are renowned in various industries for their robustness, reliability, and versatility. These connectors, compliant with the military specification MIL-DTL-5015, are essential in demanding applications where durability and performance are crucial. In this blog, we’ll dive deep into the applications, benefits, and specifications of MIL-DTL-5015 connector, providing a comprehensive guide for professionals and enthusiasts alike.

Understanding MIL-DTL-5015 Connectors

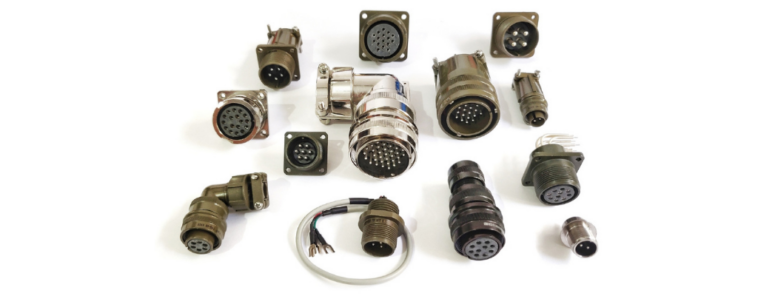

MIL-DTL-5015 connectors, previously known as MIL-C-5015, are circular connectors widely used in military and aerospace applications. They are designed to meet stringent military specifications, ensuring they can withstand harsh environmental conditions, including extreme temperatures, vibration, and moisture. These connectors are also commonly used in industrial and commercial applications due to their reliability and performance.

Key Applications of MIL-DTL-5015 Connectors

1. Military and Aerospace

   • Aerospace Systems: Used in aircraft wiring systems, avionics, and communication equipment.
   • Military Vehicles: Essential for power and signal connections in tanks, jeeps, and other military vehicles.
   • Weapon Systems: Utilized in missile guidance systems, radar systems, and other advanced weaponry.

2. Industrial Applications

   • Machinery: Integral in connecting various components in heavy machinery and industrial automation systems.
   • Robotics: Used in robotic systems requiring reliable and robust connections.
   • Transportation: Employed in railway systems and heavy-duty vehicles for secure electrical connections.

3. Commercial Applications

   • Telecommunications: Used in networking equipment and communication devices.
   • Medical Equipment: Utilized in medical imaging devices and diagnostic equipment.

Benefits of Using MIL-DTL-5015 Connectors

1. Durability and Reliability

   • Designed to endure extreme environmental conditions, including high vibration, shock, and temperature variations.
   • Made from high-quality materials, ensuring long-term reliability and performance.

2. Versatility

   • Available in various configurations, including different shell sizes, contact arrangements, and termination options.
   • Can be used in both power and signal transmission applications.

3. Ease of Maintenance

   • Designed for easy installation and removal, facilitating quick maintenance and replacement.
   • Standardized design ensures compatibility with a wide range of equipment.

4. Compliance with Military Standards

   • Adheres to strict military specifications, guaranteeing high performance in critical applications.
   • Provides peace of mind for applications where failure is not an option.

Specifications of MIL-DTL-5015 Connectors

1. Construction

   • Shell Material: Typically made from aluminum or stainless steel with various finishes for corrosion resistance.
   • Contact Material: Often made from copper alloy, gold-plated for enhanced conductivity and durability.

2. Electrical Specifications

   • Current Rating: Varies depending on the connector size and contact arrangement, typically ranging from a few amperes to hundreds of amperes.
   • Voltage Rating: Can handle voltage ratings up to several thousand volts.

3. Environmental Specifications

   • Temperature Range: Operates effectively in a wide temperature range, from -55°C to +125°C or higher.
   • Sealing: Available in waterproof versions, offering protection against dust and moisture ingress.

4. Mechanical Specifications

   • Mating Cycles: Designed to endure a high number of mating cycles, typically 500 cycles or more.
   • Vibration and Shock Resistance: Engineered to withstand significant vibration and shock, ensuring stable connections in dynamic environments.

Choosing the Right MIL-DTL-5015 Connector

When selecting a MIL-DTL-5015 connector, consider the following factors:

• Application Requirements: Determine the specific needs of your application, including current and voltage ratings, environmental conditions, and mechanical stress.
• Connector Configuration: Choose the appropriate shell size, contact arrangement, and termination type based on your application’s needs.
• Material and Finish: Select the right materials and finishes to ensure corrosion resistance and durability in your operating environment.

MIL-DTL-5015 connectors are a critical component in various high-performance applications, offering unparalleled durability, reliability, and versatility. Understanding their applications, benefits, and specifications is essential for making informed decisions when selecting connectors for your projects. Whether you’re involved in military, aerospace, industrial, or commercial sectors, MIL-DTL-5015 connectors provide the robustness and performance you need to ensure the success and longevity of your equipment.
