Sand Casting: The Oldest Metal Forming Process- Manufacturing and Comm

To make metal implements and components sand casting is one of the favored options and is most likely to us e for coming up with casted metallic pieces. Due to its large versatility, this molding technique has existed for hundreds of years and is still relevant today as it is able to make complex shapes out of a variety of metals at a low cost to the customer. Here, the sand casting operation, its applications, advantages and disadvantages, as well as its place in modern society are discussed

This method is particularly used to make a mass number of metal parts which have relatively bigger features and shape and also parts with complicated internal shapes such as engine blocks machine cases gears and a few others.

To know more about sand casting- https://www.indianmetal.solutions/

Sand Casting Disadvantages

That said, despite the drawbacks with this technique, sand casting is still one of the most preferred and practiced methods for the production of metal parts, particularly in industries that require large metals or parts which have complex features.

High Investment Cost

Sand and binders which are normally low in cost and easily obtainable are some of the materials that characterize sand making. In addition, one has a high chance of reusing sand which ensures that the amount of materials consumed is low making this type of casting the most economical of them all. This is especially true for cases where large batch production is the norm.

Effective for a plethora of metals

A specific jolt and squeeze casting system makes it possible to perform the sand casting of differently shaped aluminum, steel, iron, brass and bronze parts. Besides, this technology is also very adaptable in terms of the size and shape of the part so that any part of complicated and detail configuration can be fabricated.

Large and complex shapes

One standout advantage to using a sand casting technique is that the end pieces that are produced tend to be large and have complicated dimensions that are unique, thus making it possible to form structures that may be impossible to achieve using any other way. Also these are such concepts that are to say about depression features or other complex designed concepts.

Adjustable in terms if production volume

This technology is good for both the low quantity production as the volume production. Furthermore, the methods may be adjusted, with minimal risk, to optimize the production of the mentioned work but also to turn it into mass production.

Personalisation

Personalisation can be enhanced by the use of patterns which in turn enhances the increase in specialization of parts which may be required in various sectors such as automotive, aerospace and industrial machines.

Sand Casting Process:

In summary, steps in the sand casting process are a number and when carried out, each contributes to the production of quality castings.

Development of a Pattern

Sand casting begins with the first step which is pattern making. It also serves as a template for making the mold. To be able to produce the desired outcomes, it must be created from wood, plastic, or metal. Depending on the level of intricacy of the design, It can be composed of two or more components. Other other forms of the pattern are also possible and contain other features which are risers, sprues, and runners that assist in the metal filling into the cavity.

Creation of The Mold

This is the last stage of pattern preparation where the pattern to be used is placed in a specific dry sand and then mold is obtained by adding a suitable binder to the sand. The sand and polymer mixture must retain shape when pressure is applied but have to permit evolved gases during the casting from the sand over the polymer mixture.

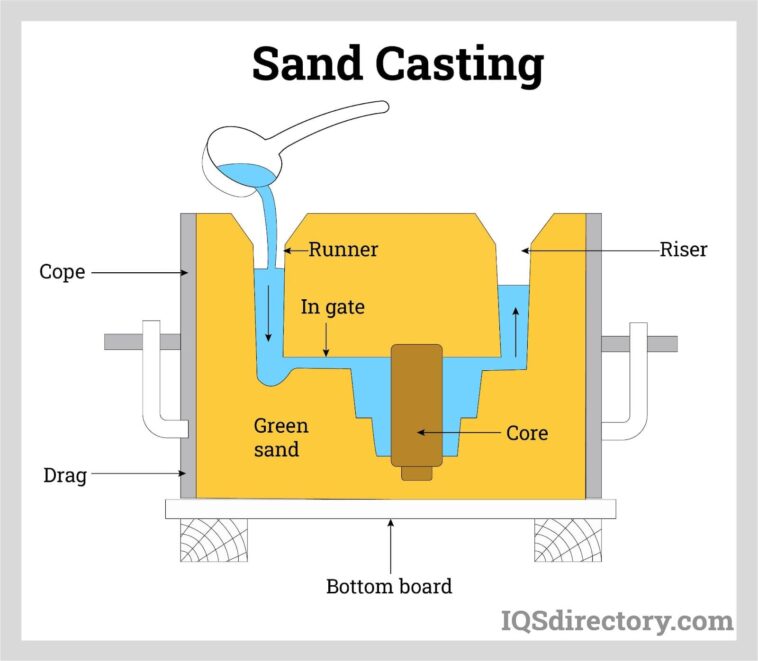

A mold comprises of two main components namely the cope which is the upper half, and the drag which is the lower half. One of the patterns is first placed within a container known as fastening, where bond materials are spread over it to the amount sufficient to create a mold. When the molding mass gets dry and set, the pattern is removed in such a way that there appears a hole in the shape of that part of the pattern which has been removed.

Melting and Pouring

Metal tends to be held in a furnace at this stage of the process until the particular temperature conducive to casting is reached. The liquified metal then is poured through a sprue into the360 mold so that the entire cavity is surrounded by it. For the most part, the filling of the cavity of the mold is done through gravitation force, although instead of gravity, for some modern sand casting techniques, pressure in pushing the metal into the cavity of the mold distinctively at a higher velocity rate, is employed.

Cooling After the pouring sedimentation, the cast shrinkage voids are occupied with molding sand as now there are no thermal stresses that are produced by molten metal. The overall cooling period for the casting is said to differ from one measured to another based on the length, form and type of the metal casting. At this stage, the metal casts in the internal cavity of the forming tool and the cooling starts. Demolding When the metal has been cooled and set, the sand mold is disassembled to reveal the rough metal casting. Such ending, known as Shakeout, is defined by the process of sand displacement from the additional metal part which is mortised into the body. Cleaning and assembling Certainly, there will be also cleaning and finishing operations which are anticipated to follow the casting. It would become requisite to shears or to file away surplus metal from the sprues, risers and runners, and a surface finish which includes grinding, machining or polishing would be needed. Additionally an extra process such as heat treatment could be used to improve the mechanical qualities of the cast component.

Some of the most common are the ones given below:

 • Automotive Industry: Such parts as engine blocks, cylinder heads and manifold

• Aerospace Industry: Engine parts and structural parts of aircraft

• Industrial Machines: Large cases, gears and frames. • Building and Construction: These include large pipes, big valves and other large components made of metal.

• Arts and Sculpture: Sandcast is also one of the processes used in these field of arts to create large decorative sculptural pieces and fragments.
