The Evolution of Large Format Mill Liners: Innovations and Advancement

In the realm of mineral processing and grinding operations, large format mill liners play a critical role in ensuring optimal performance and longevity of grinding mills. These liners, which line the interior of mills, are essential for protecting the mill shell from wear and tear, improving grinding efficiency, and minimizing downtime. Over the years, the evolution of large-format mill liners has seen significant advancements driven by technological innovations and the ever-increasing demands of the mining industry. This article explores the transformative journey of large-format mill liners, highlighting key innovations and advancements that have shaped their development.

Early Developments

The concept of mill liners dates back to the early days of industrial mining when cast iron liners were first introduced. These early liners were relatively simple in design, primarily serving as a protective barrier against the abrasive action of grinding media and ore. While effective to some extent, these early liners often suffered from issues such as high wear rates, limited lifespan, and inefficiencies in grinding performance.

Advances in Material Science

One of the most significant advancements in Large Format Mill Liners has been the development of new materials. Traditional cast iron liners gradually gave way to more advanced materials, including high-chrome steel and various composites. High-chrome steel liners offered improved wear resistance and extended service life compared to their predecessors. However, the real breakthrough came with the introduction of composite liners, which combined metal and rubber components to enhance both durability and flexibility.

Composite liners are composed of a rubber matrix reinforced with metal inserts. This combination provides superior impact resistance and wear life while reducing noise and vibration. The flexibility of rubber helps absorb shocks and reduces the risk of liner fractures, leading to more consistent performance and extended intervals between liner replacements.

Enhanced Design and Engineering

As the mining industry continued to evolve, so did the design and engineering of large format mill liners. Advances in computer-aided design (CAD) and finite element analysis (FEA) have revolutionized the way liners are developed. Modern design tools allow engineers to simulate the behavior of liners under various operating conditions, leading to more precise and efficient designs.

One notable advancement is the development of modular liner systems. These systems consist of interchangeable liner segments that can be easily replaced or repositioned, minimizing downtime during maintenance. Modular liners also offer the flexibility to adapt to different mill sizes and configurations, providing a more versatile solution for diverse processing needs.

Innovations in Liner Installation and Maintenance

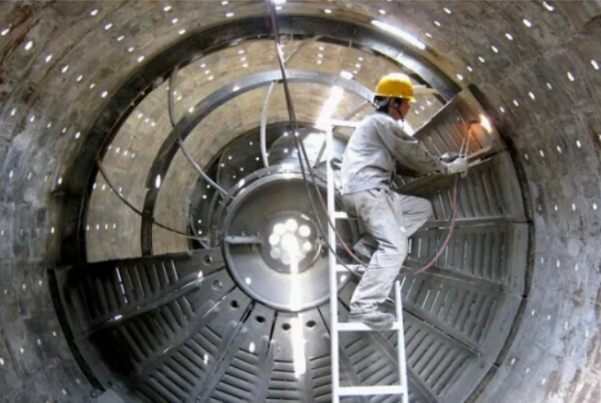

The process of installing and maintaining large format mill liners has also seen considerable advancements. Traditional methods of liner installation often involved labor-intensive procedures, including manual lifting and positioning of heavy liners. However, modern innovations have introduced hydraulic and automated systems that streamline the installation process, reducing labor costs and improving safety.

One such innovation is the use of liner handling equipment, including hydraulic jacks and cranes specifically designed for mill liner maintenance. These tools enable more efficient liner replacements and inspections, minimizing downtime and optimizing overall mill performance. Additionally, advancements in wear monitoring technologies, such as sensors and predictive maintenance systems, allow for real-time monitoring of liner conditions, enabling proactive maintenance and reducing the risk of unexpected failures.

Future Directions

The future of large format mill liners is poised to be shaped by ongoing research and development in material science, engineering, and automation. Emerging technologies, such as advanced wear-resistant coatings and smart materials, hold the promise of further enhancing liner performance and longevity. Additionally, the integration of artificial intelligence (AI) and machine learning in liner design and maintenance processes may lead to more sophisticated and adaptive solutions.

Sustainability is also becoming a key consideration in the evolution of mill liners. As the mining industry increasingly focuses on reducing its environmental footprint, there is a growing emphasis on developing liners that are more energy-efficient, recyclable, and produced using sustainable practices.

Conclusion

The evolution of large format mill liners reflects the dynamic nature of the mining industry and its continuous quest for improved efficiency, durability, and safety. From the early days of cast iron liners to the latest advancements in composite materials and modular designs, the journey of mill liners has been marked by significant innovations and technological advancements. As the industry moves forward, the continued evolution of large format mill liners will undoubtedly play a pivotal role in enhancing the performance and sustainability of grinding operations. By embracing these advancements, mining operations can look forward to more efficient and cost-effective milling processes, ultimately contributing to the overall success of their operations.
